The Great Rhino Hunt of New Orleans
Cybersecurity - Forensics Project Report
Forensic investigation of a disk image and three network traces
Main Tools
The main tools used in this project:
- Wireshark
- Autopsy
- FTK Imager
- JPSH for Windows r0.5
- John the Ripper
Background
From Rhino Hunt archives at NIST (Links to an external site.)
Scenario
“The city of New Orleans passed a law in 2004 making possession of nine or more unique rhinoceros images a serious crime. The network administrator at the University of New Orleans recently alerted police when his instance of RHINOVORE flagged illegal rhino traffic. Evidence in the case includes a computer and USB key seized from one of the University’s labs. Unfortunately, the computer had no hard drive. The USB key was imaged and a copy of the dd image is on the CD-ROM you’ve been given.
In addition to the USB key drive image, three network traces are also available—these were provided by the network administrator and involve the machine with the missing hard drive. The suspect is the primary user of this machine, who has been pursuing his Ph.D. at the University since 1972.”
MD5 Hashes for evidence
c0d0093eb1664cd7b73f3a5225ae3f30 *rhino.log
cd21eaf4acfb50f71ffff857d7968341 *rhino2.log
7e29f9d67346df25faaf18efcd95fc30 *rhino3.log
80348c58eec4c328ef1f7709adc56a54 *RHINOUSB.dd
The image and trace files are in a zip archive (Links to an external site.)The Task
Recover at least nine rhino pictures from the available evidence and include them in a brief report. In your report, provide answers to as many of the following questions as possible:
- Who gave the accused a telnet/ftp account?
- What’s the username/password for the account?
- What relevant file transfers appear in the network traces?
- What happened to the hard drive in the computer? Where is it now?
- What happened to the USB key?
- What is recoverable from the dd image of the USB key?
- Is there any evidence that connects the USB key and the network traces? If so, what?

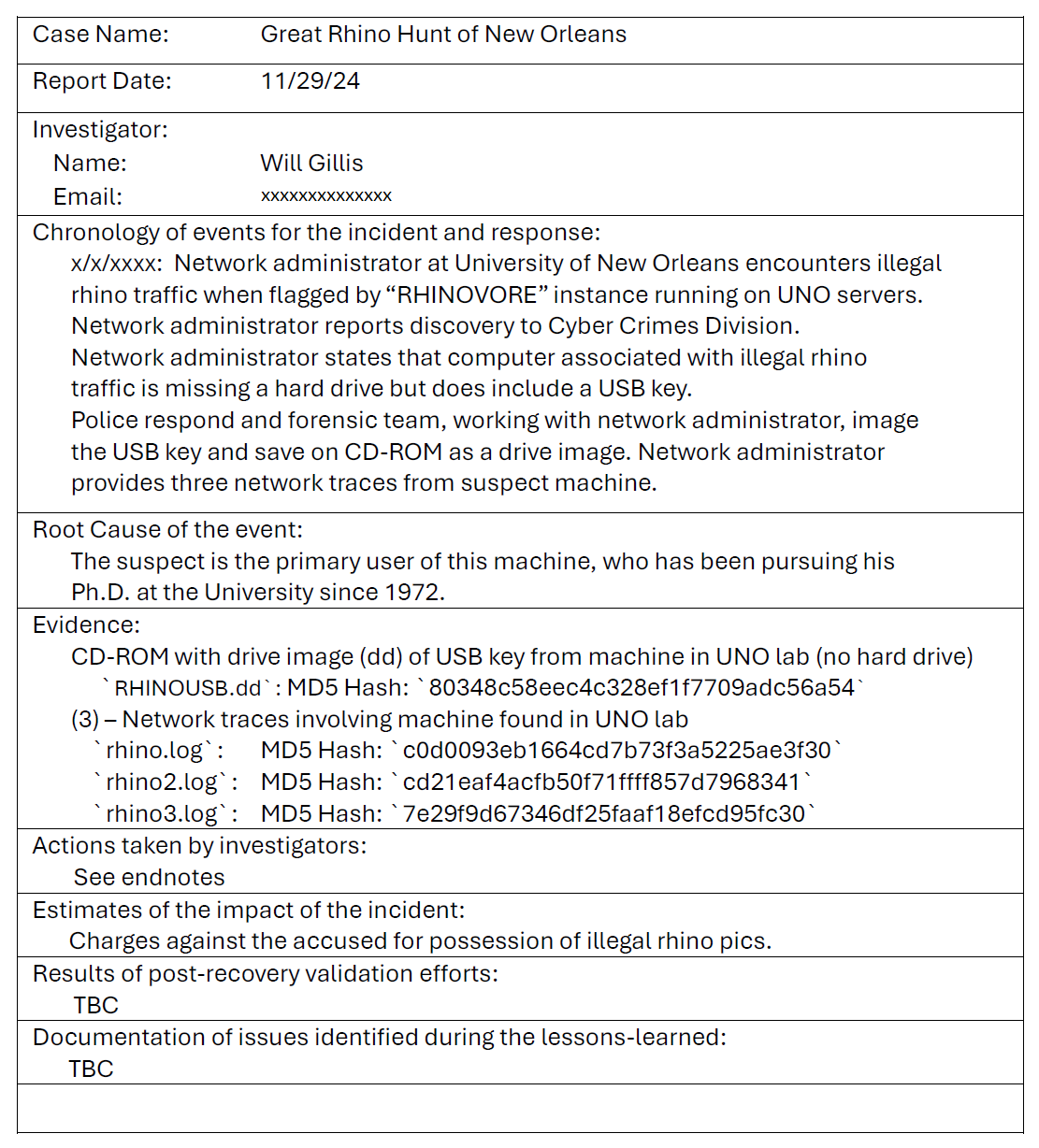

Report
Responses
Recover at least nine rhino pictures from the available evidence and include them in a brief report. In your report, provide answers to as many of the following questions as possible:
1. Who gave the accused a telnet/ftp account?
Jeremy set up the account according to the diary/journal (see entries at 4 & 5): “I need to change the password on the gnome account that Jeremy gave me. I can probably just do that at Radio Shack.”
2. What’s the username/password for the account?
gnome / gnome123i
3. What relevant file transfers appear in the network traces?
Refer to endnotes below: two images plus one zip file in FTP transfer in
rhino.log, two images and one HTML in HTTP transfer inrhino2.log, andrhino.exeinrhino3.log
4. What happened to the hard drive in the computer? Where is it now?
According to the diary/journalii, “I zapped the hard drive and then threw it into the Mississippi River.”
5. What happened to the USB key?
According to the same diary/journal, “I’m gonna reformat my USB key after this entry, but try not to destroy the good stuff.”
6. What is recoverable from the dd image of the USB key?
From the unallocated files, (7) jpg and (2) gif images, though not all are rhinos. Also, there is a diary/journal, recipes, and an html webpage.
7. Is there any evidence that connects the USB key and the network traces? If so, what?
None found at time of report, though the same rhino photo was on the USB and on the network traces.
Images recovered
`rhino3.jpg`iii
`rhino5.gif`v
dupe `11-f0105864.gif`
`12-f0106320.png`
`13-f0106344`vi
Steganography
Endnotes

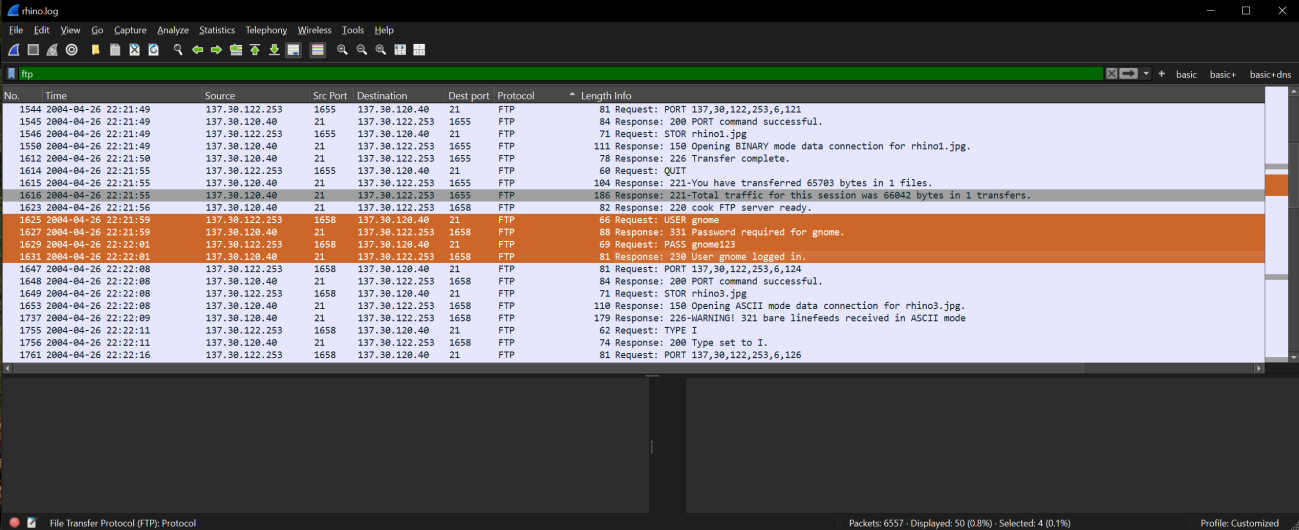

i: Analysis of rhino.log using Wireshark v4.4.2. Login/password Information was readable with filter ftp (top).
ii: Diary recovered from analysis of RHINOUSB.dd using FTK Imager v4.7.3.81 and extracting Unallocated Space 25604. This file in turn analyzed using Autopsy v4.21.0 and extracting text file:

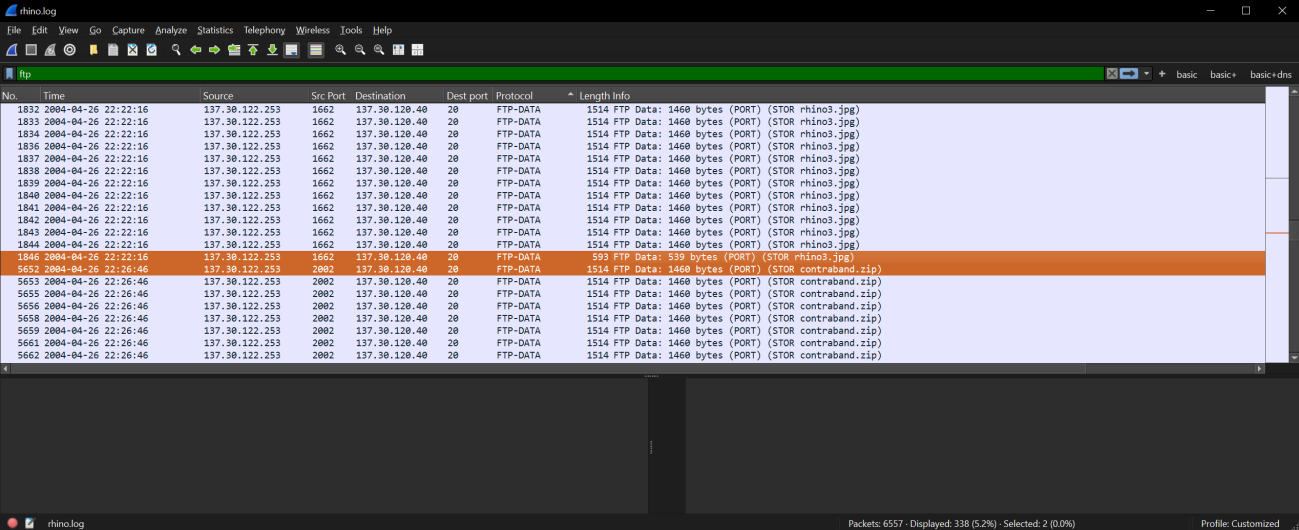

iii: rhino.log analyzed using Wireshark v4.4.2 images rhino1.jpg and rhino3.jpg as well as file contraband.zip were readily apparent using an additional filter of ftp-data (bottom), then extracted using File → Export Objects → FTP-DATA.
iv: Extracted the contraband.zip file using John the Ripper v1.9.0. First generated a password list using Python script (kept password length at 6 characters beginning with ‘m’ to keep computer from crashing), then converted the zip file using command zip2john, and finally using john.

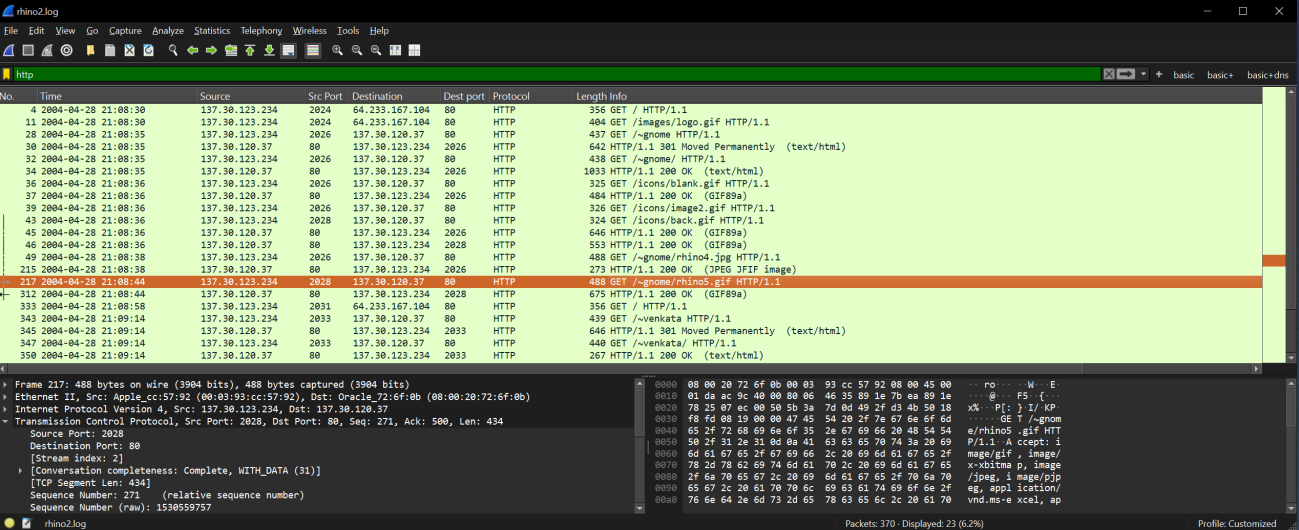

v: Similarly, rhino2.log analyzed using Wireshark with a filter of http, extracted using File → Export Objects → HTTP

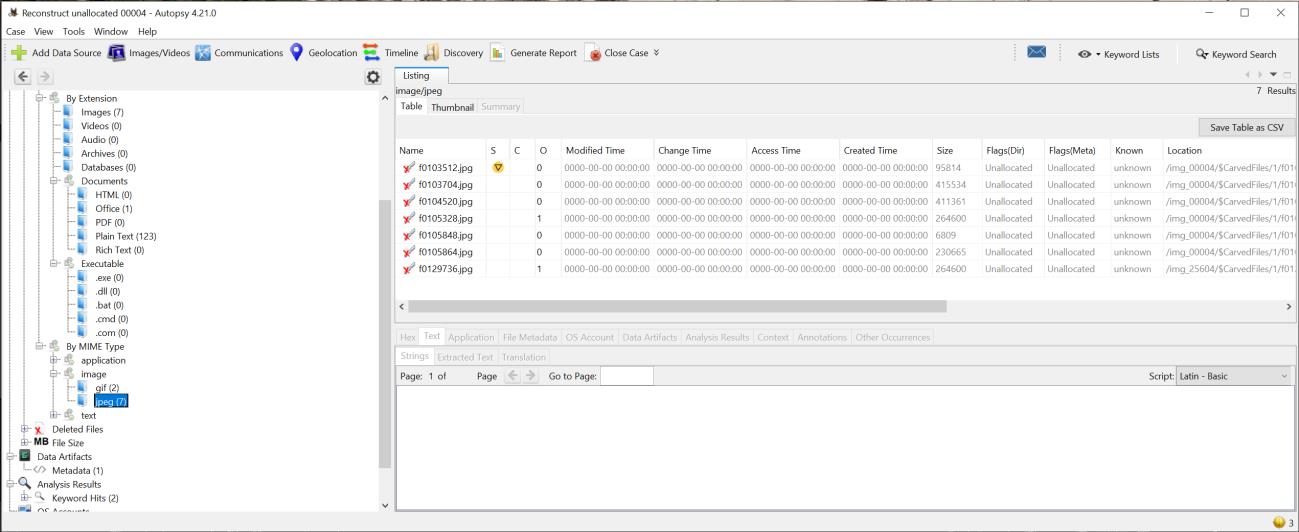

vi: Using FTK Imager, extracted the Unallocated Space file named 00004, then opened this file with Autopsy. From Autopsy, (7) - .jpg files were extractable: four were of alligators (with one repeat), and two were of rhinos (with one repeat). Additionally, (2)- .gif images of rhinos were extractable.

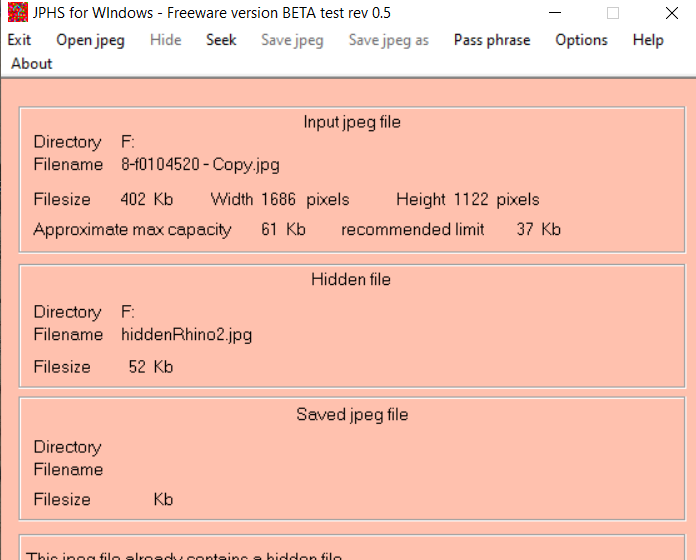

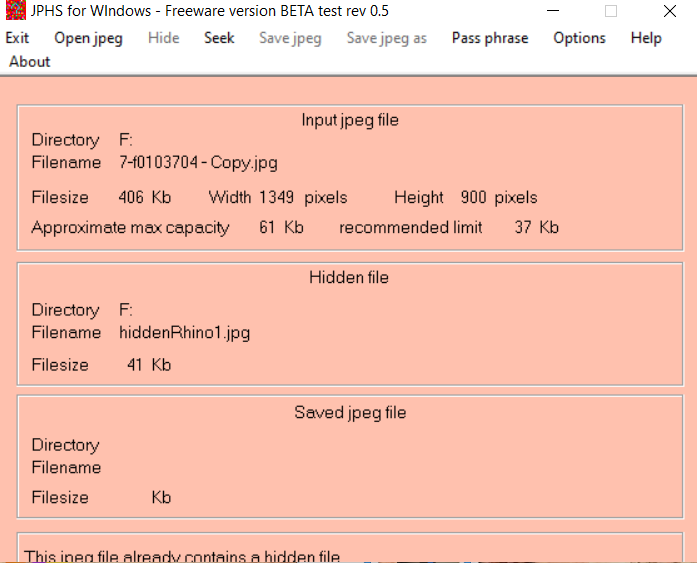

vii: Using JPHS for Windows v0.5 extracted hidden images from steganographic images: First from 7-f0103704.jpg using a PROVIDED password of gator, the second from 8-f0104520.jpg using a PROVIDED password of gumbo
